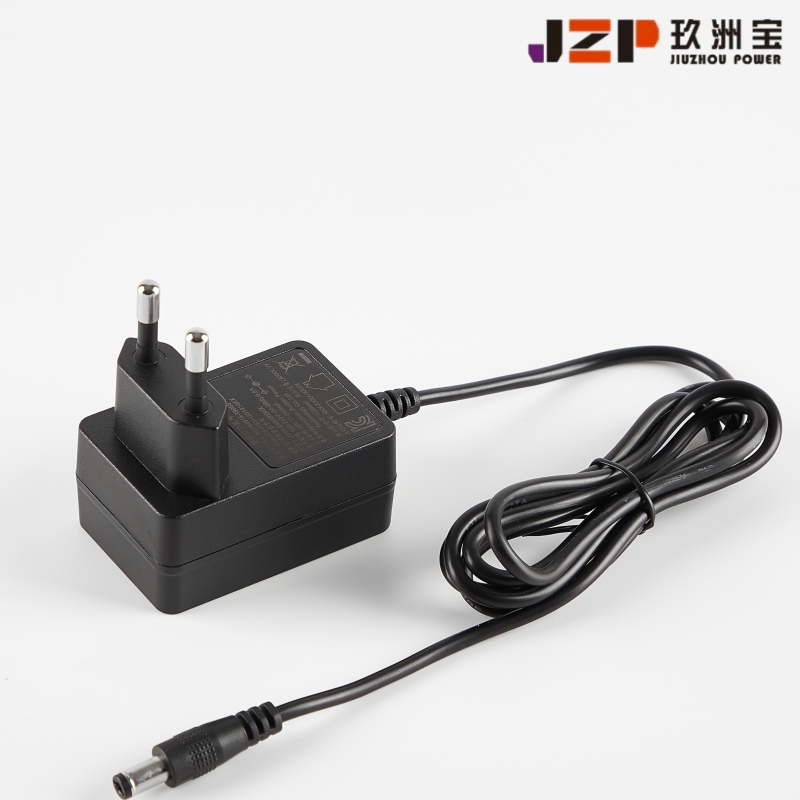

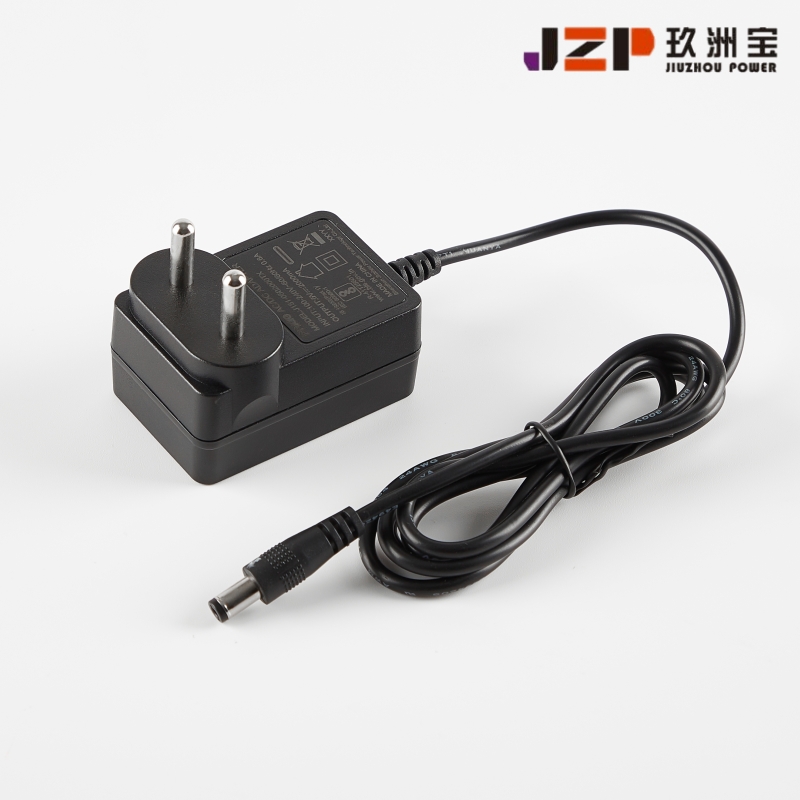

J151-電源適配器帶線
12v1a電源適配器美規UL認證充電器廠家-玖洲寶
- 型號：JZB151-090100TX
- 輸出：9v1000ma 1500ma 2000ma
- 認證：KC UL CE FCC PSE GS
- 尺寸：L58.2x W38.7x H26mm
- Product description: 12V1a適配器充電器印度規BIS認證可定制充電器，9v2a電源適配器生產廠家玖洲寶科技有限公司
產品描述:
12V1a電源適配器美規UL認證充電器適配器廠家：深圳市玖洲寶科技有限公司
| 產品名稱： |
JZB151-1201000TX JZB151-1201500CX JZB151-9002000CX |
| 輸入電壓： | 100V-240V 50/60HZ |
| 輸出電壓： | 9v 1a 1.5a 2a |
| 輸出方式： |
DC輸出接口 DC:3.5*1.35*10mm DC：5.5*2.1*10mm DC:5.5*2.5*10mm |
| 高壓測試： | 3000V AC |
| 外殼尺寸 | L58.2x W38.7x H26mm |
| 老化負載： | 輸入220V 滿負載老化2小時 |
| 顏 色： | 黑色 白色 可定制 |
| 支持安規認 證： |
IEC62368音視頻標準 IEC61558小家電標準 CCC CE GS FCC UL KC PSE SAA |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 中規 | 3C CQC | 5V/9V/8.4V/12V/12.6V/16.8V/24V/25.2V | 650ma | J151-2520650CU |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 美規 | UL | 1000ma | J151-1681000UU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 歐規 | CE | 2000ma | J151-0902000EU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 日規 | PSE | 3000ma | J151-0503000JU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 英規 | UKCA | 1500ma | J151-0915000BU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 澳規 | SAA | 500ma | J151-2400500SU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 韓規 | KC KCC | 2000ma | J151-1260650KU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 印度規 | BIS | 2000ma | J151-0840200TU | |
| J151 | 12V1A/9V2A/5V3A/24V0.5A | 臺灣規 | BSMI | 2000ma | J151-0502000MU |
產品尺寸圖
輸入特性/INPUT CHARACTERISTICS:
2.1輸入電壓/Input Voltage:
額定電壓/Rated Voltage: 100-240 Vac
調整范圍/Variation Range: 90-264 Vac
2.2輸入頻率/Input Frequency:
額定頻率/ Rated Frequency: 50-60 Hz.
調整頻率/Variation Frequency: 47-63 Hz
2.3輸入電流/Input Current:
當輸入交流電壓為額定值的下限電壓負載滿載時,最大輸入交流電流 0.35 A.
0.35 Amps max At any input voltage and rated, DC output rated load.
2.4浪涌電流/Inrush Current:
沖擊電流峰值在額定電壓輸入，冷啟動（25℃）時，不大于 30A ;且在任何負載和輸入條件下，不導致永久性損壞或危險.
Impact current peak in the rated voltage input, cold start (25 ℃), not more than 30 A; And in any load and input conditions, don't cause permanent damage or dangerous.
2.5 AC漏電流/Ac Leakage Current:
當輸入電壓240Vac時,最大漏電流為0.25mA./ 0.25mA Max.At240Vac input.
2.6 Stand-by power consumption ≤ 0.1 Watts.
待機功耗≤ 0.1 W.
